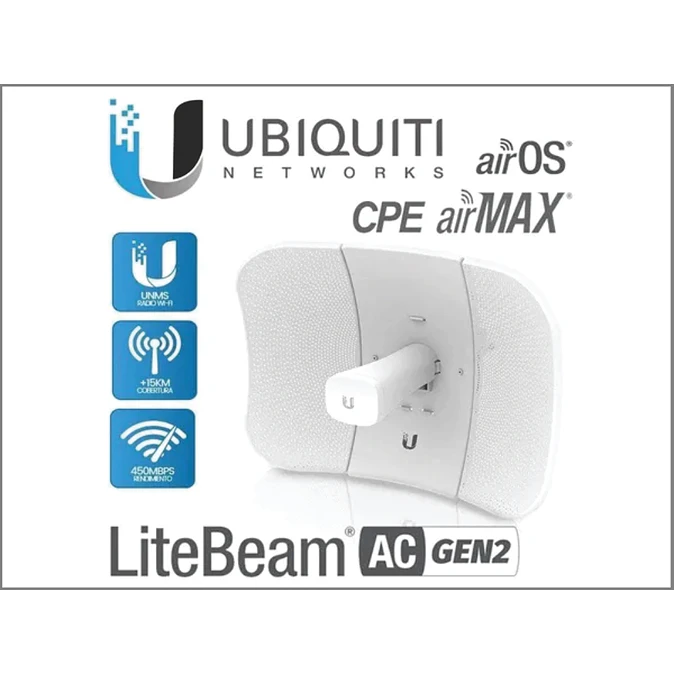

LiteBeam 5AC Gen2

Mechanical

Dimensions      179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3")

Weight 180 g (6.4 oz)

Enclosure material       UV-stabilized plastic

Dimensions 358 x 271.95 x 272.5 mm (14.1 x 10.7 x 10.7")

Weight Without mount: 800 g (1.8 lb)

With mount 980 g (2.2 lb)

Wind survivability 200 km/h (125 mph)

Wind loading 275 N at 200 km/h (61.8 lbf at 125 mph)

Hardware

Networking interface (1) GbE RJ45 port

Power method Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply 24V, 0.3A gigabit PoE adapter (Included)

Supported voltage range 22–27V DC

Max. power consumption 7W

Max. power output 25 dBm

Gain 23 dBi

Ambient operating temperature -40 to 70° C (-40 to 158° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

NDAA Compliant Yes
