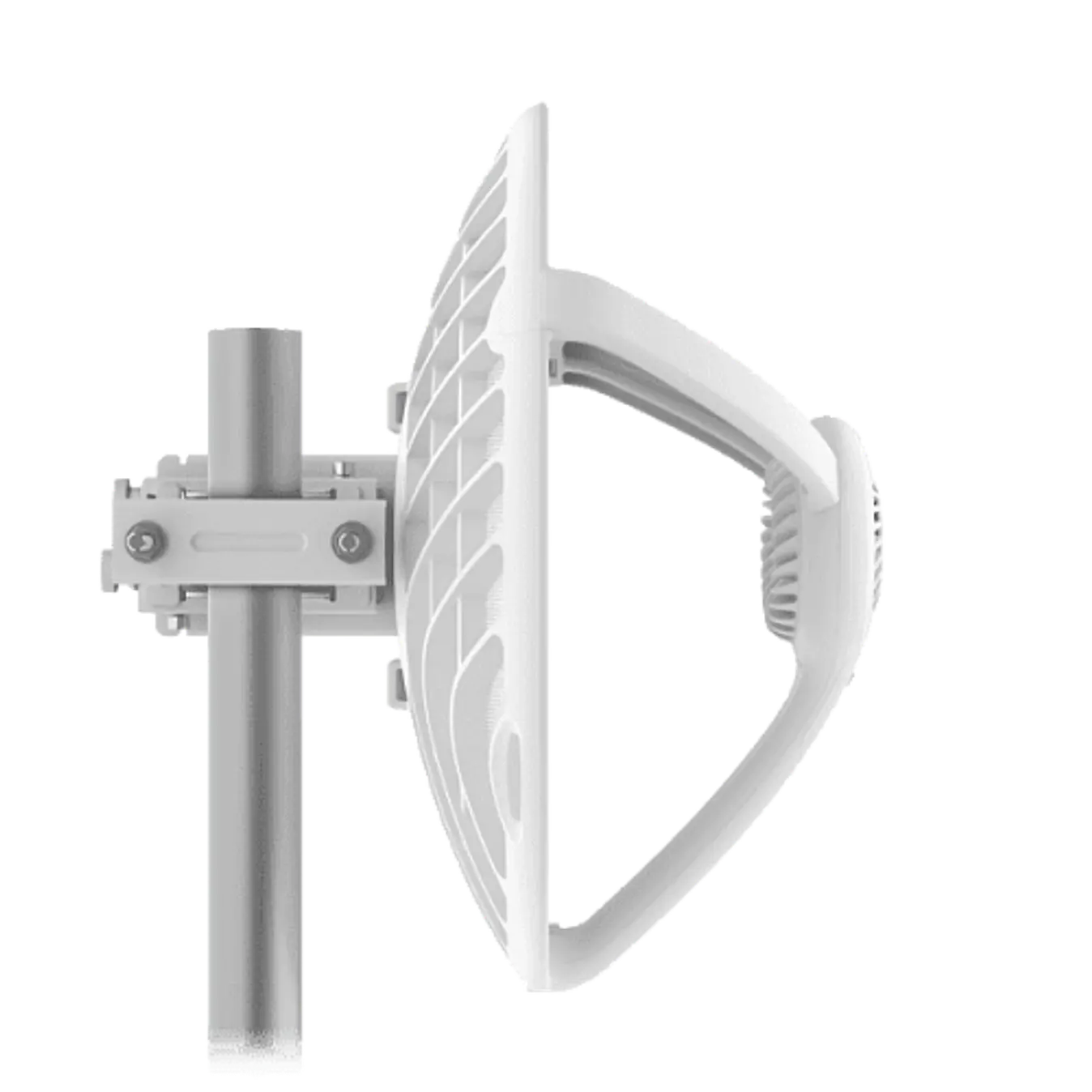

airFiber 60 Long-Range

Dimensions Ø413 x 360 mm (Ø16.3 x 14.2")

Weight Without mount: 1.5 kg (3.3 lb)

With mount: 2.7 kg (6 lb)

Enclosure material Aluminum, UV stabilized polycarbonate

Mount material Galvanized steel

Mounting Precision alignment kit (included)

Pole compatibility: Ø25.4 to 76.2 mm (Ø1 to 3")

Wind loading 420 N at 200 km/h (94.4 lbf at 125 mph)

Hardware

Processor Quad-Core ARM® Cortex® A7

Memory 256 MB DDR3

Networking interface (1) GbE RJ45 port

Max. power consumption 22W

Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply 48V DC, 0.65A gigabit PoE adapter (Included)

Supported voltage range 44–54V DC

22–27V DC

GPS Yes

RF connections Internal

ESD/EMP protection Air/contact: ± 24kV

Ambient operating temperature -40 to 60° C (-40 to 140° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications FCC, IC, CE

NDAA Compliant Yes

Software

Operating mode PtP only

Ubiquiti specific features Wave technology, discovery utility

Network Bridge mode

Services UISP, ping watchdog, NTP client

Tools Antenna alignment, discovery utility, ping, trace route, speed test

Software management Bluetooth management for easy setup over UISP app

WEB UI

Minimum software requirements Any modern web browser/iOS™ or Android™ based smartphone

System

Max. throughput 1.95 Gbps

Max. range 12+ km

Encryption WPA2-PSK (AES)

RF

Operating frequency* 57–71 Ghz

* Depends on regulatory region.

Channel bandwidth 2160, 1080 MHz

Polarization Vertically linear

Beamwidth Azimuth: 3 dB 1.6°

Elevation: 3 dB 1.6°

LEDs

Power Flashing white: bootup in progress

White: not connected to UISP application

Blue: connected to UISP application

Ethernet Flashing blue: Ethernet activity

GPS Blue: receiving at least (4) GPS satellite signals

60G Blue: active connection
