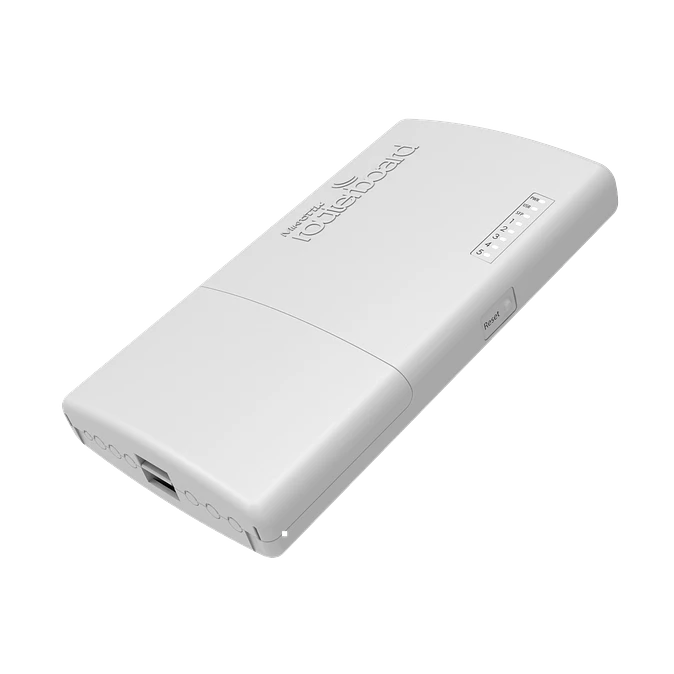

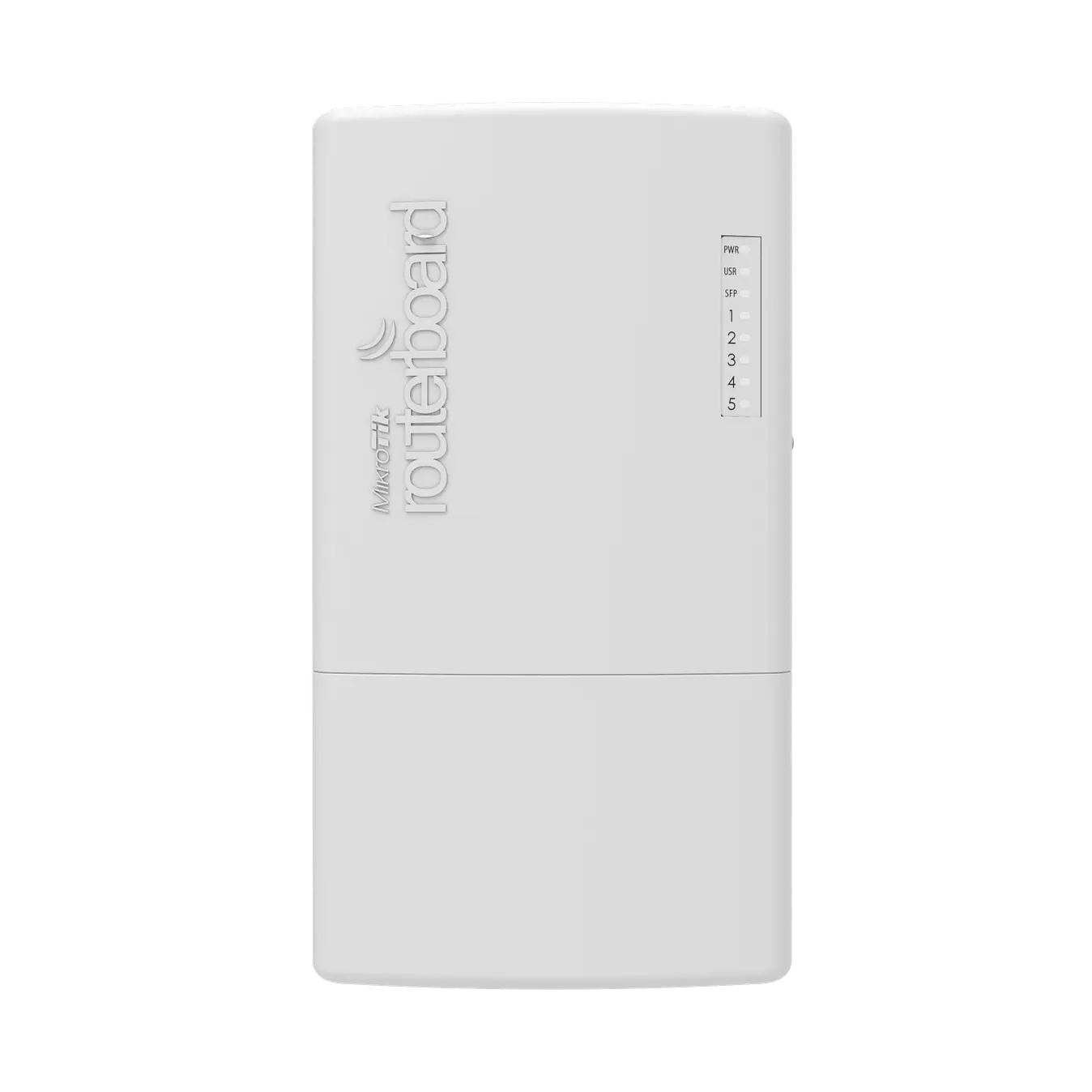

Mikrotik Power Box Pro

Product code RB960PGS-PB

Architecture MIPSBE

CPU QCA9557

CPU core count 1

CPU nominal frequency 800 MHz

Switch chip model QCA8337

Dimensions 125 x 52 x 225 mm

RouterOS license 4

Operating System RouterOS

Size of RAM 128 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 70°C

Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 12-57 V

Max power consumption 54 W

Max power consumption without attachments 6 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 12-57 V

PoE-out

Details

PoE-out ports Ether2-Ether5

PoE out 802.3af/at

Max out per port output (input 18-30 V) 1 A

Max out per port output (input 30-57 V) 450 mA

Max total out (A) 2 A

Ethernet

Details

10/100/1000 Ethernet ports 5

Fiber

Details

SFP ports 1

Other

Details

PCB temperature monitor Yes

Voltage Monitor Yes
