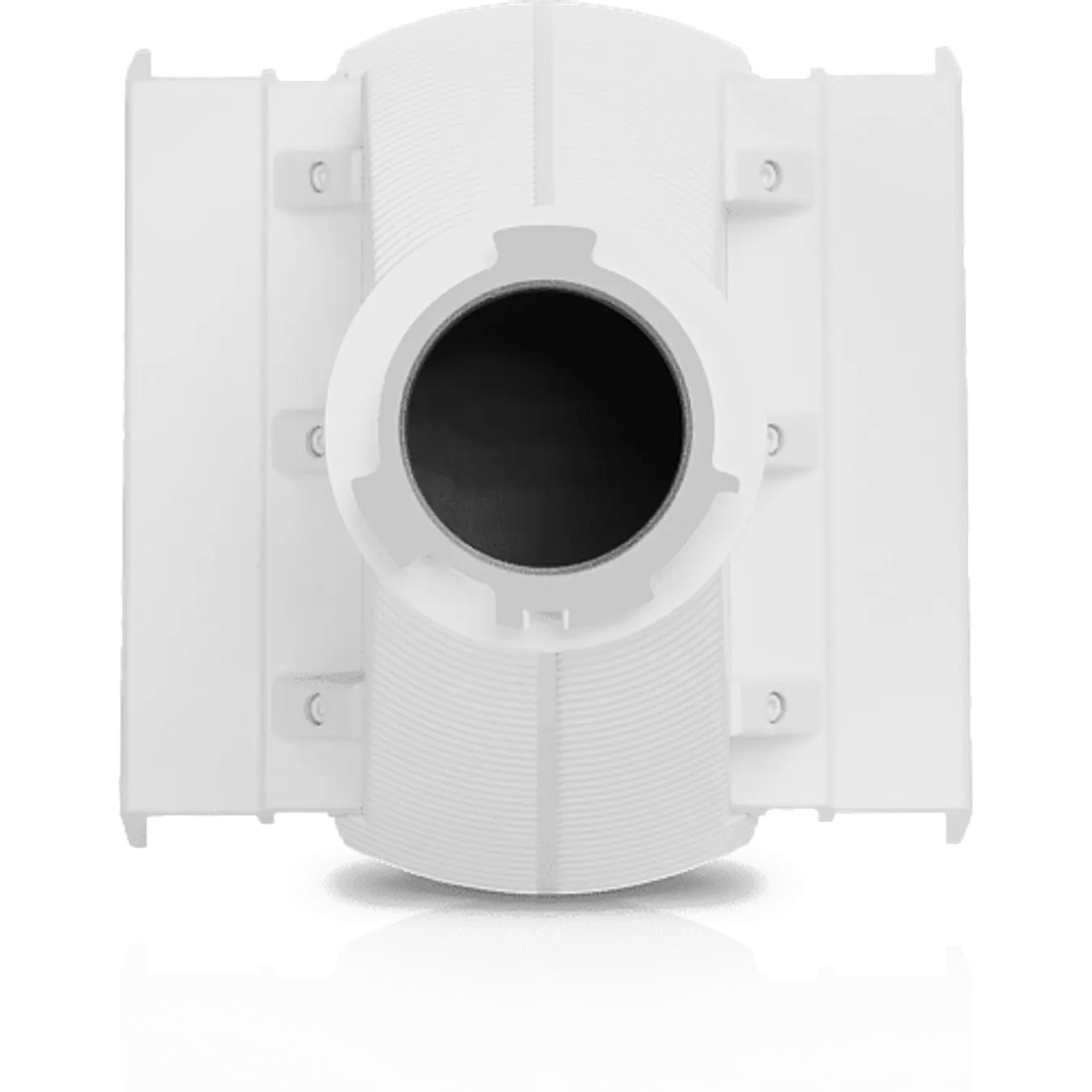

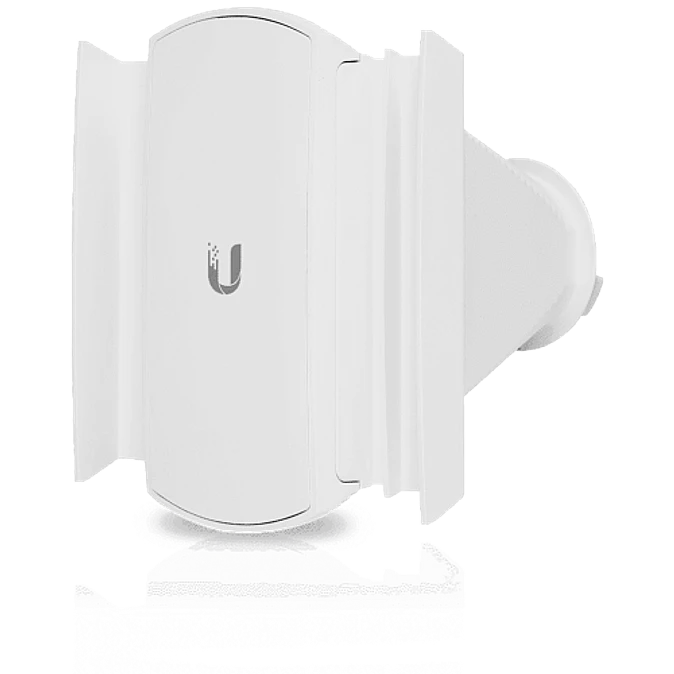

airMAX PrismStation Horn 60º

Descripción

Horn-5-60
Dimensions161.6 x 173.3 x 170.9 mm (6.4 x 6.82 x 6.73")
Weight720g (1.6 lb)
Supported Frequency Range5.15 -5.85 GHz
Gain16 dBi
HPOL Beamwidth60°
VPOL Beamwidth60°
Elevation Beamwidth30°
Maximum VSWR2:1
Wind Survivability200 km/h (125 mph)
Wind Loading50 N @ 200 km/h (11.2 lbf @ 125 mph)
PolarizationDual-Linear
Cross-Pol Isolation17 dB
