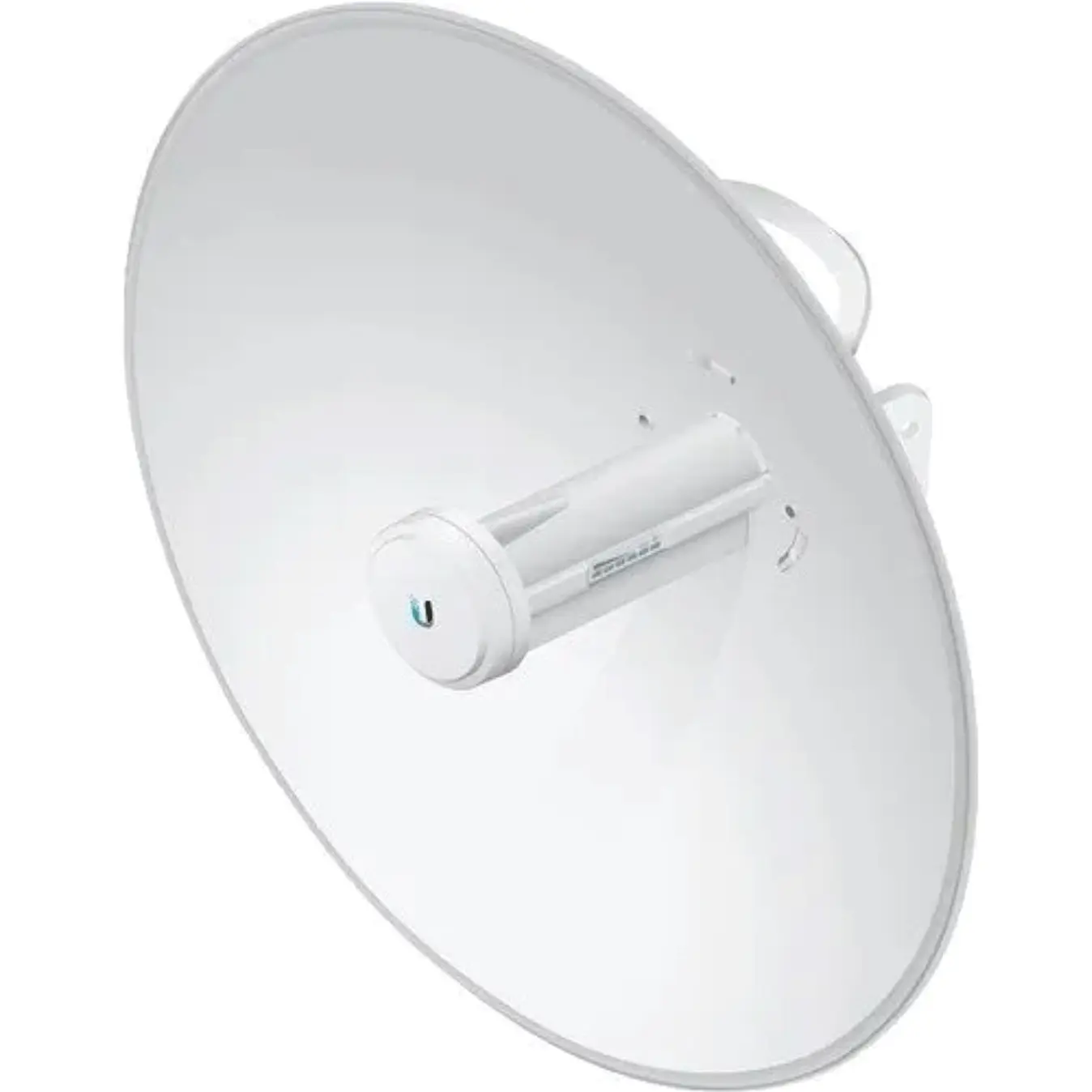

PowerBeam AC 25 Dbi Gen2

Dimensions      420 x 420 x 230 mm (16.5 x 16.5 x 9.1")

Weight 2.2 kg (4.9 lb)

Enclosure material       UV-stabilized plastic, powder-coated SPCC

Wind loading    380 N at 200 km/h (85.4 lbf at 125 mph)

Wind survivability         200 km/h (125 mph)

Mounting           Pole mount kit (Included)

Hardware

Networking interface   (1) GbE RJ45 port

Power method Passive PoE 2-pair (4, 5+; 7, 8 return)

Max. power consumption          8.5W

Supported voltage range           20—27V DC

Power supply   24V, 0.5A gigabit PoE adapter (Included)

ESD/EMP protection    Air/contact: ± 24 kV

LEDs     (1) Power, (1) LAN, (4) WLAN

Salt fog test      IEC 68-2-11 (ASTM B117)

Equivalent: MIL-STD-810 G method 509.5

Vibration test   IEC 68-2-6

Temperature shock test             IEC 68-2-14

UV test IEC 68-2-5 at 40° C (104° F)

Equivalent: ETS 300 019-1-4

Wind-driven rain test   ETS 300 019-1-4

Equivalent: MIL-STD-810 G method 506.5

Ambient operating temperature            -40 to 70 C (-40 to 158 F)

Ambient operating humidity    5 to 95% noncondensing

Certifications  CE, FCC, IC, RoHS

NDAA Compliant           Yes

System

Gain     25 dBi

Channel sizes  PtP Mode: 10/20/30/40/50/60/80 MHz

PtMP Mode: 10/20/30/40 MHz

Operating Frequency (MHz)

Worldwide        5150-5875 MHz
